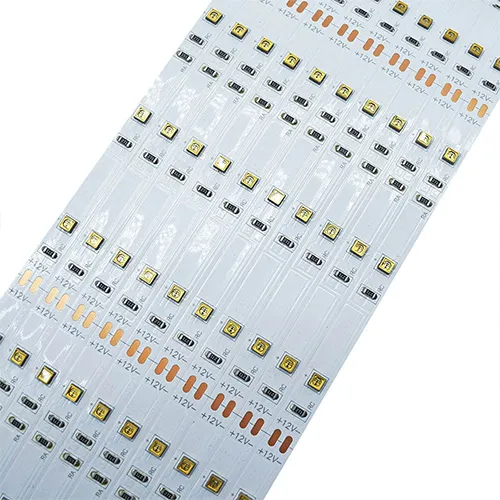

High radiant power 12W UVC LED strip with peak wavelengths of 254nm, 265nm, and 275nm delivers exceptional sterilization performance. The product features a DC forward current of 600-1000mA, a radiant power of 200-650mW, and operates at 12V. With a lifespan of 10,000 hours, it is designed for high-efficiency applications. The compact PCB size of 250*50mm and customizable view angles (30/60/90/120 degrees) make it versatile for various lighting solutions.
DC Forward Current | 600-1000mA |
DC Forward Voltage | 12V |
Radiant Power | 200-650mW |
Power Consumption | 10 W |
Peak Wavelength | 255/265/275nm |
Dimension | 250*50mm |
View Angle | 30/60/90/120 degrees |
High Radiant Power Output: Each UVC LED delivers over 15mW of radiant power, ensuring rapid and efficient microbial inactivation per unit area.
Multi-Wavelength Precision: Three wavelength options—254nm, 265nm, and 275nm—allow targeted disinfection based on pathogen absorption peaks.
Excellent Thermal Management: Built-in aluminum substrate and thermal conductive layer ensure controlled lumen depreciation and stable performance during continuous operation.
Industrial Water & Dust Resistance: IP65-rated encapsulation withstands humidity, dust, and chemical exposure, suitable for cleanrooms, food production lines, and harsh environments.
Flexible Customization: Supports tailored configurations in length, LED density, wavelength, and connectors to meet diverse disinfection system integration needs.
