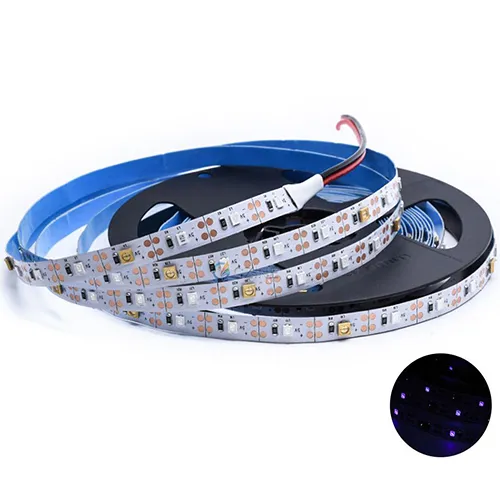

3535+2835 12V Flexible Led Strip UVC+UVA Disinfection 395nm 275nm 8mm 120 Led

This flexible LED strip innovatively integrates dual-band UVC 275nm and UVA 395nm ultraviolet light, achieving both efficient disinfection and fluorescence excitation. Utilizing a robust mixed layout of 3535 and 2835 LEDs, it ensures high-intensity and uniform UV output. The flexible design allows easy installation on complex surfaces, making it an ideal disinfection and inspection solution for medical devices, laboratory equipment, water treatment systems, and specialized industrial applications.

SPECIFICATIONS

Specifications of 3535+2835 12V Flexible Led Strip UVC+UVA Disinfection 395nm 275nm 8mm 120 Led

Operating Voltage
12V DC
UV Spectrum
275nm (UVC) + 395nm (UVA)
LED Type
3535 + 2835 (Mixed Layout)
LED Count
60 LEDs/m
Strip Width
8mm
Protection Rating
IP20
Operating Temperature
-20°C ~ 50°C
Lifespan
≥ 10,000 hours
Power
Max 14.4w/m
Packaging Specification
5m/1reel


CHARACTERISTICS

Characteristics of 3535+2835 12V Flexible Led Strip UVC+UVA Disinfection 395nm 275nm 8mm 120 Led

  • Dual-Band High Efficiency: Simultaneous output of UVC 275nm (germicidal) and UVA 395nm (fluorescence excitation/curing), multi-functional in one strip for space efficiency.

  • Hybrid LED Layout: 3535 LEDs deliver high-intensity UVC output, while 2835 LEDs provide uniform UVA coverage, ensuring optical effectiveness and reliability.

  • Flexible & Easy Installation: 8mm ultra-narrow width, bendable to fit curved surfaces, suitable for complex structures like tanks, pipelines, and instrument interiors.

  • Safe Low Voltage: 12V DC operation, safe for use, compatible with most low-voltage control systems, and customizable in length and connectors

  • Industrial Durability: Made with high-temperature resistant and anti-aging materials, optional waterproof encapsulation for long-term use in humid or corrosive environments.
