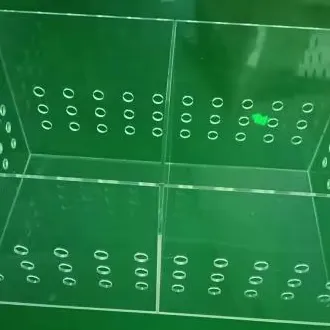

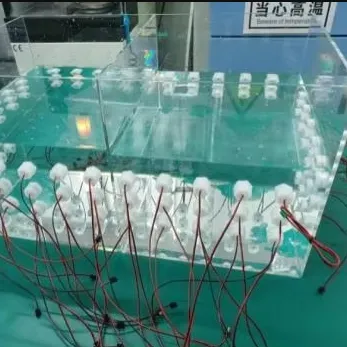

This UVC LED module is designed for water disinfection in tanks up to 10L, featuring a peak wavelength of 260-270nm and an output radiant power of 4-6mW. It ensures a 99.9% sterilization rate and is waterproof, making it ideal for humidifiers, pet water dispensers, and water purifiers. The module undergoes rigorous testing, including waterproof, aging, and bactericidal tests using E. coli, ensuring strong stability and quality assurance.
| UV Sterilization of Water804 | |
| Voltage | DC12V or DC24V |
| Peak Wavelength | 260nm-270nm or as customized |

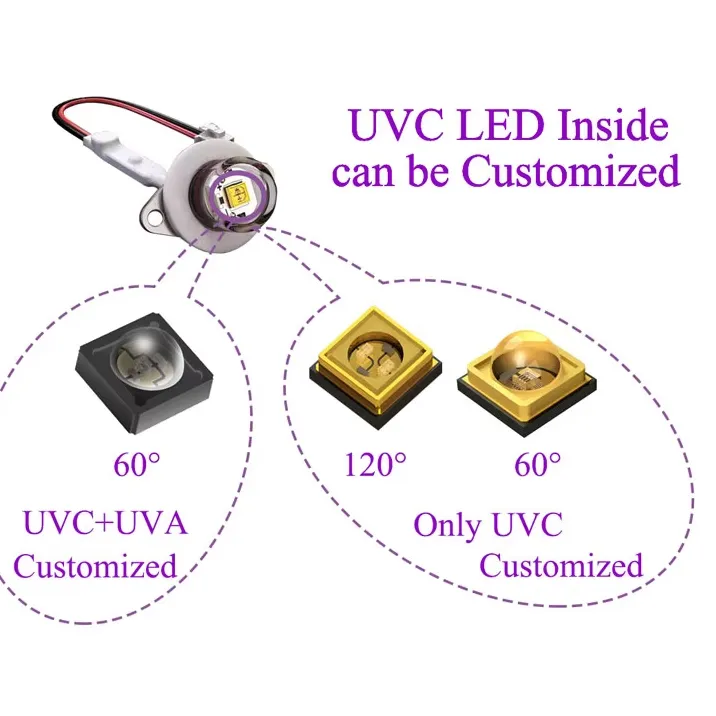

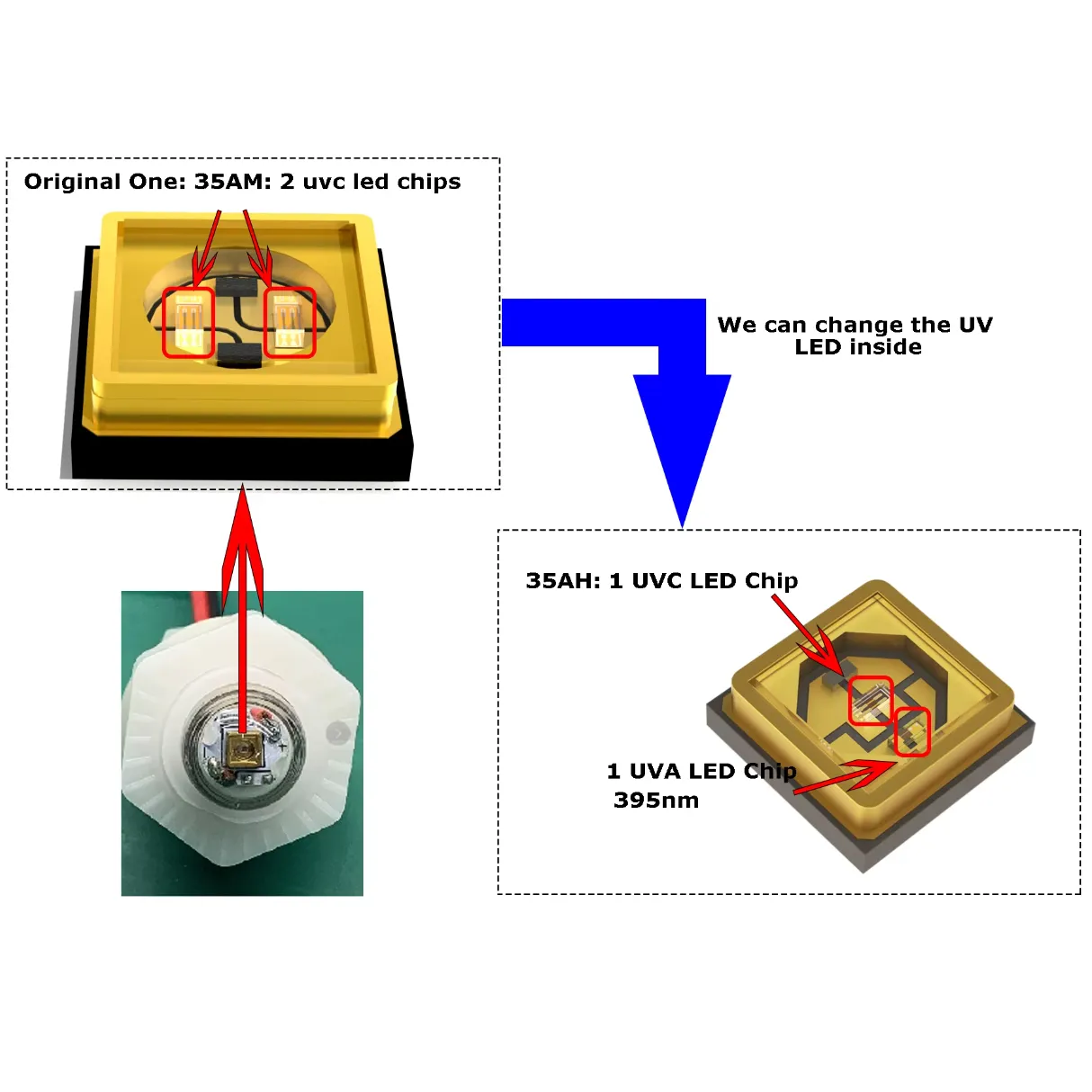

| UVC LED Inside | 35AM(UVC) (Regular); 35AH(UVC+UVA) (Customized); 35AR(UVC+Blue) (Customized) |
| Output Radiant Power | 4-6mW |
| Sterilization Rate | 99.9% |
| Applicable Water Tank Volume | Within 10L |

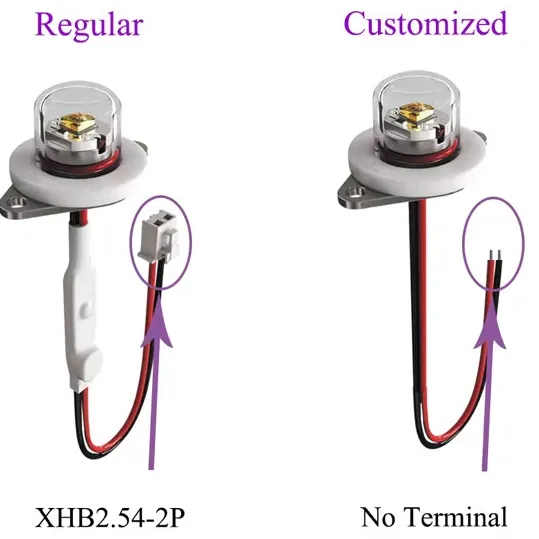

| Terminal Type | Customized |
| Length of the Wire | Customized |
Product Features: Multi-Wavelength Options: Available in 260nm, 265nm, and 270nm UVC wavelengths to precisely match varying water quality and disinfection needs.
Waterproof Sealing: Fully IP68-rated modular design, built for long-term stable operation in humid environments like plastic water tanks.
High-Efficiency Sterilization: UVC LEDs directly destroy microbial DNA/RNA, achieving up to 99.9% inactivation of bacteria and viruses.

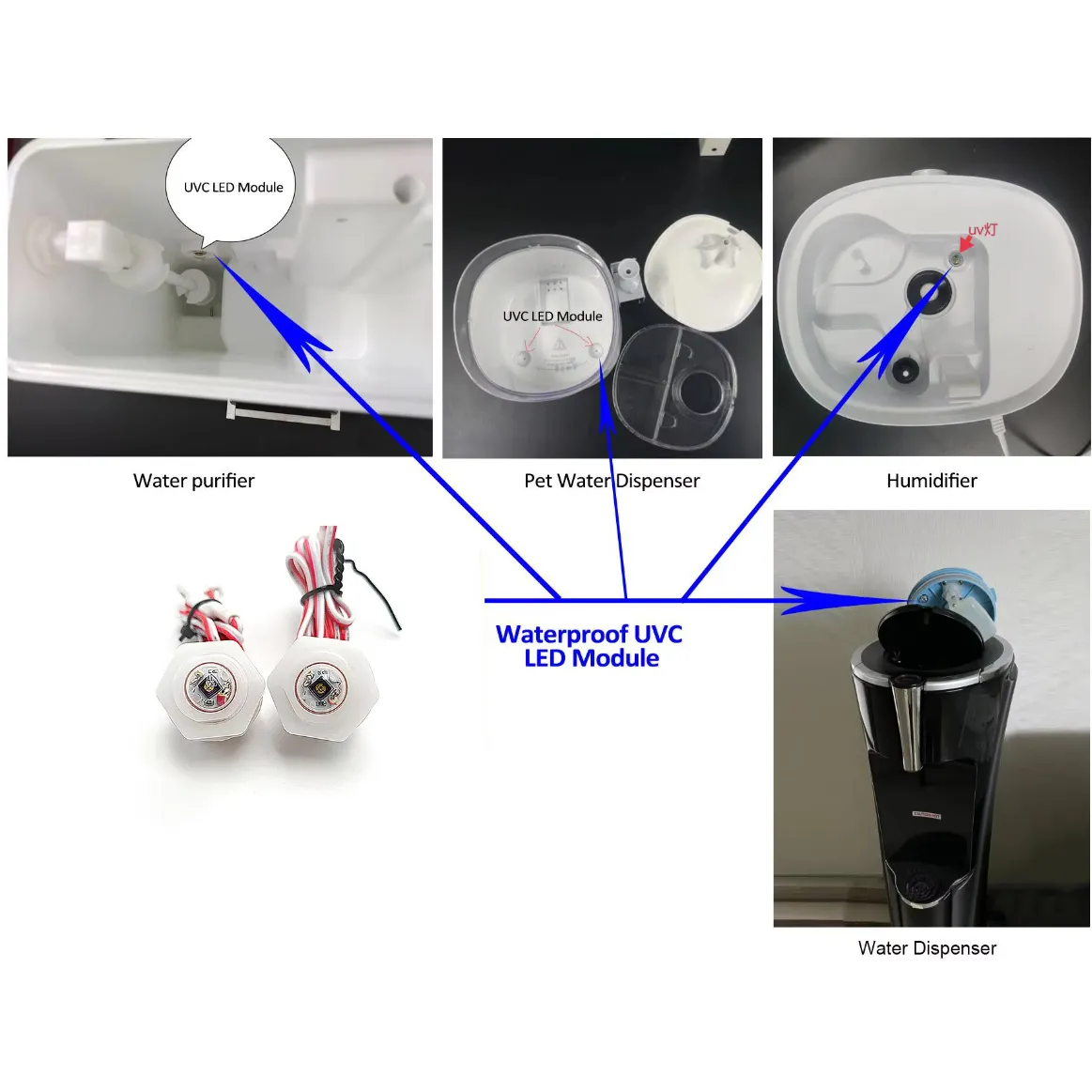

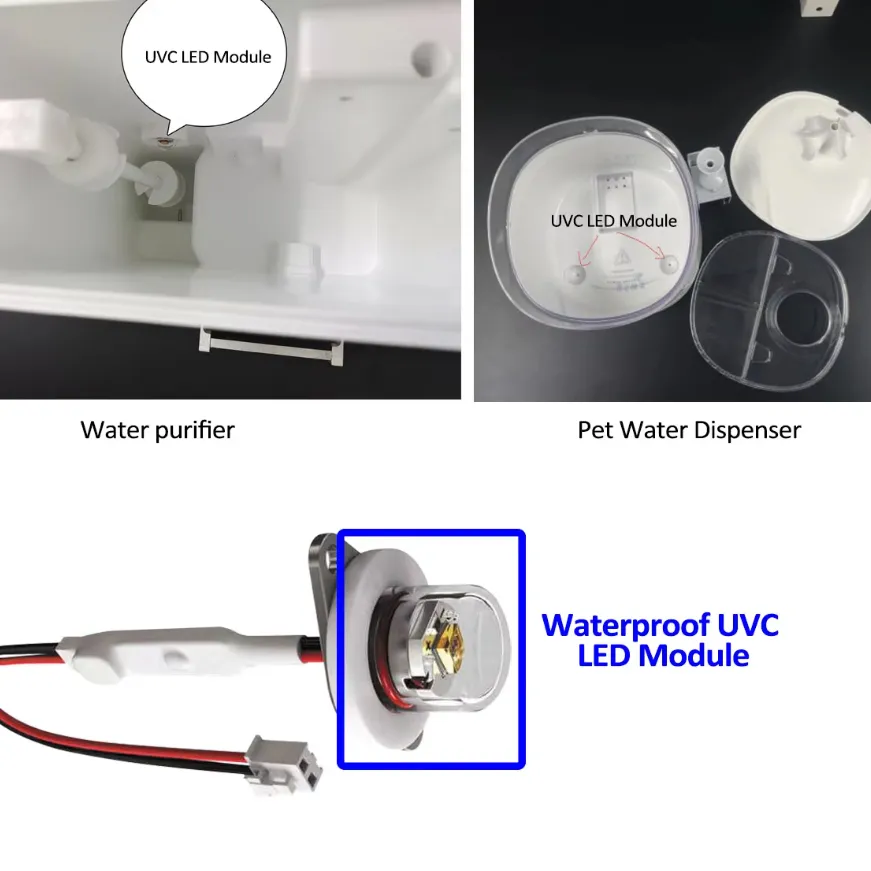

Flexible Integration: Modular structure easily integrates into various static water systems, simple to install, suitable for household and commercial water storage units.
