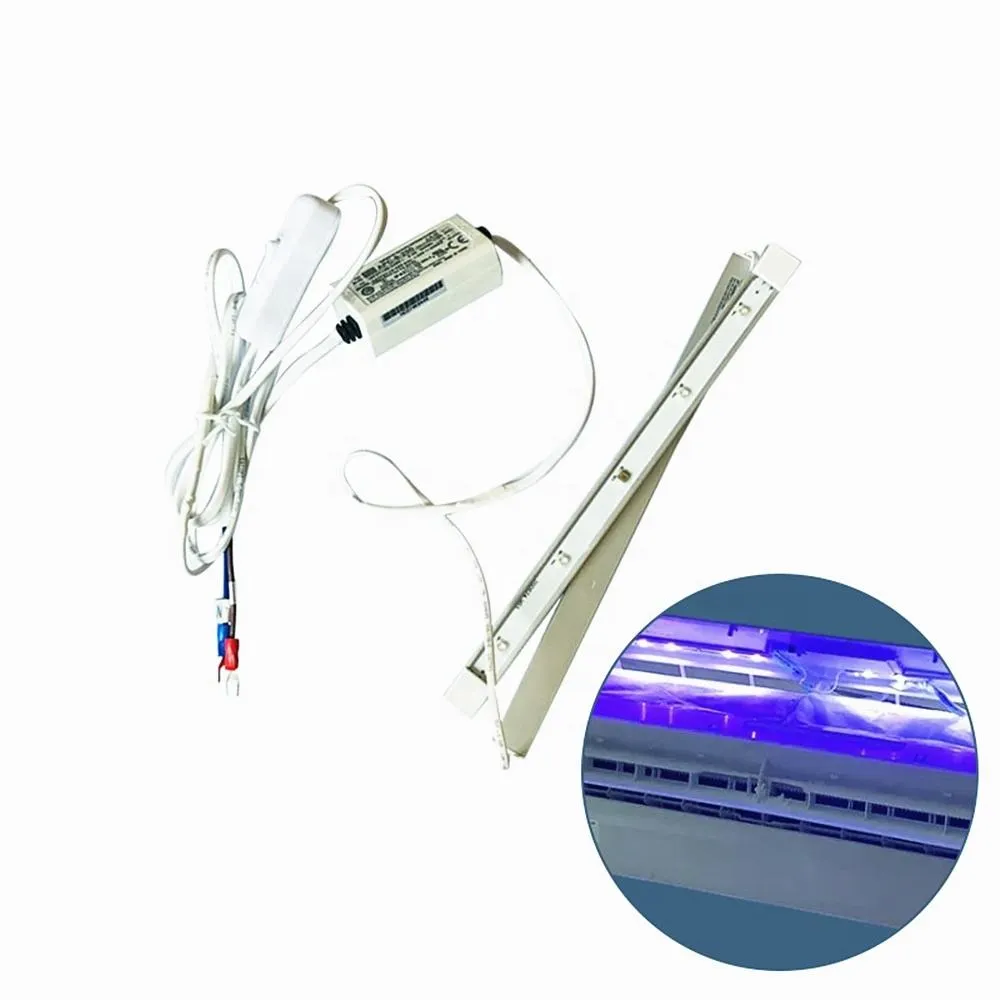

UV LED Air Sterilizing System for mini splits with TiO2 Photocatalyst Film, utilizing UV-C and photocatalyst sterilization methods for purification and disinfection. The system converts harmful organic contaminants into carbon dioxide and water, enhancing indoor air quality effectively. It operates at a 275nm wavelength, offering 3-5 years of effective life and includes a 2-year warranty.
| UV Air Disinfection | |
| Application | Home, Hotel |
| Lamp Luminous Efficiency (lm/w) | 60 |
| Switch Mode | Manual Button |
| Power Source | Rechargeable Battery Pack |
| Application Area (㎡) | 0.01 |
| Input Voltage | AC 100-305 |
| Lighting Solutions Service | Lighting And Circuitry Design, Auto Cad Layout |
| Portable | Yes |
| Support Dimmer | No |
| UV Optical Power (μW/cm²) | 500 |
| Wavelength (nm) | 275 |
| Sterilization Method | UV-C and photocatalyst |
| Radiant Power | 20mW |
| Product Size | 25×15×4cm |
| Function | Purification and disinfection |

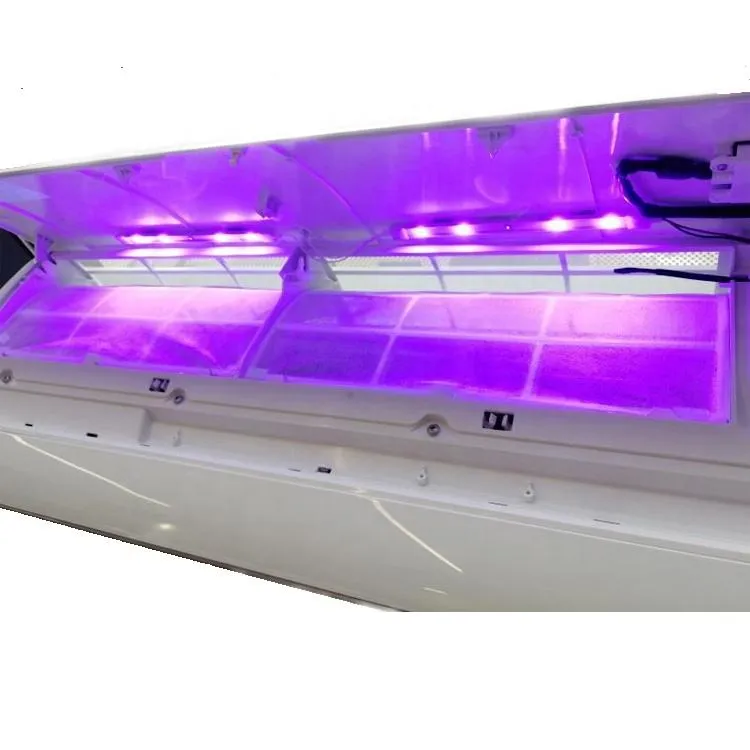

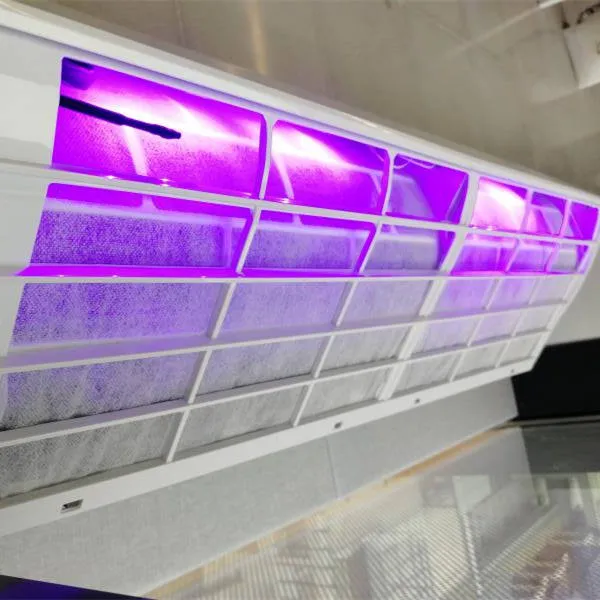

Targeted Integration: Specifically designed as an upgrade module for mini-split air conditioner systems, providing in-duct air sterilization to improve indoor air quality.

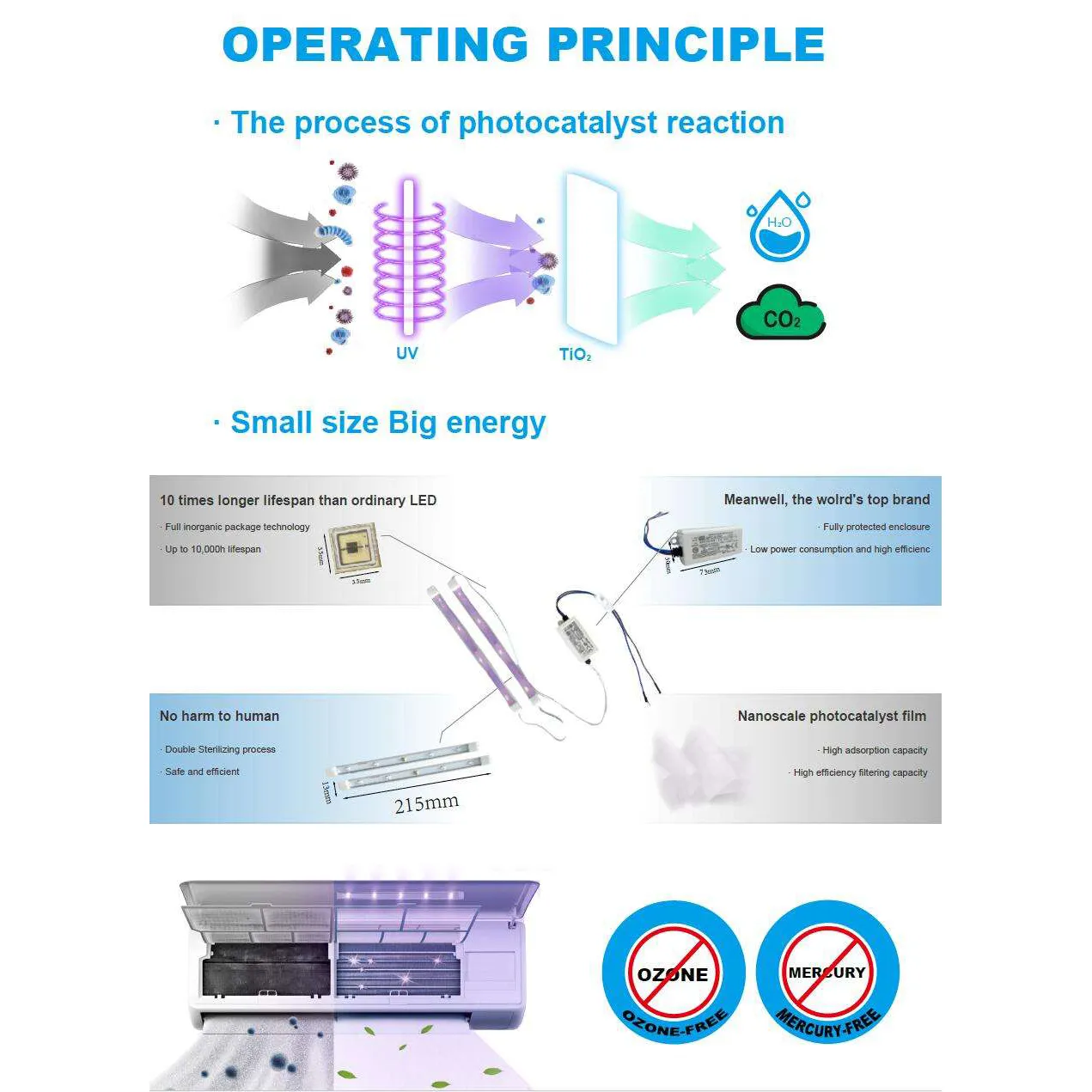

Dual Purification Technology: Combines 265-275nm UVC LED light for direct germicidal action with a TiO2 photocatalyst film, enabling advanced oxidation to neutralize a broader range of VOCs, odors, and microorganisms.

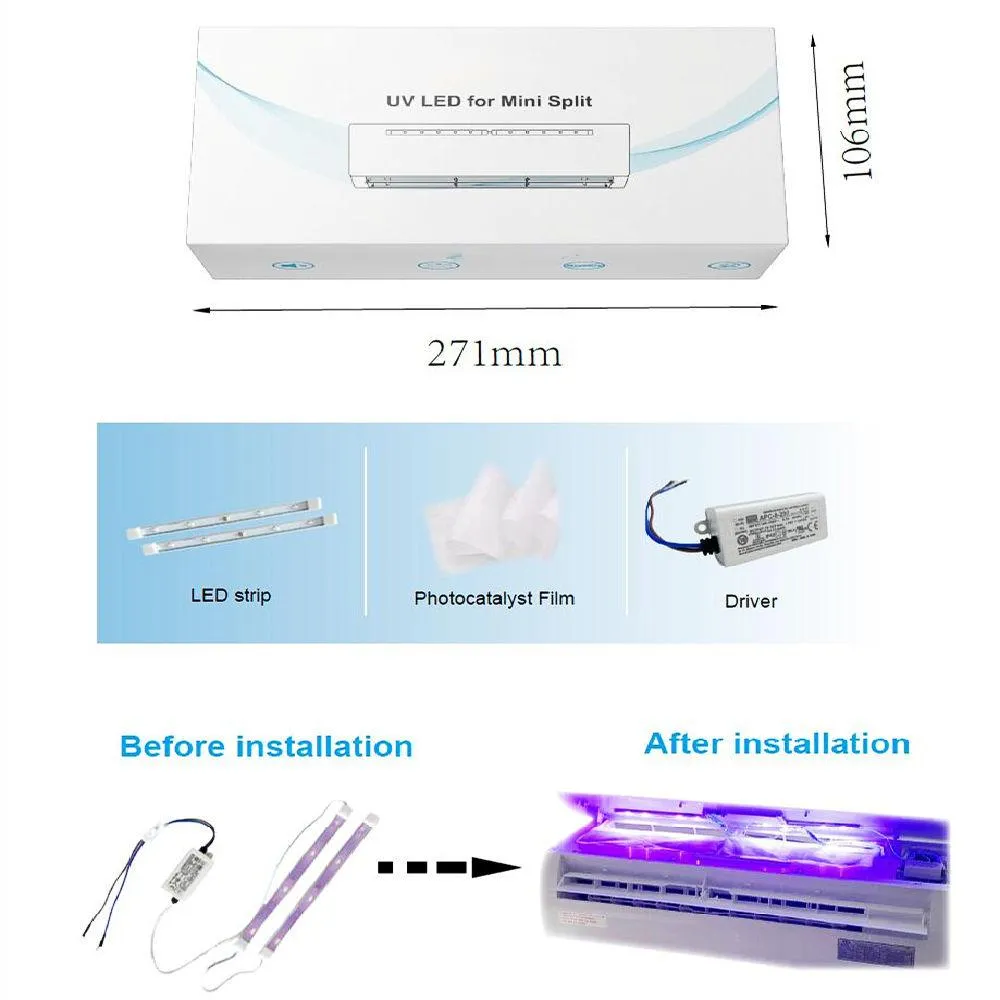

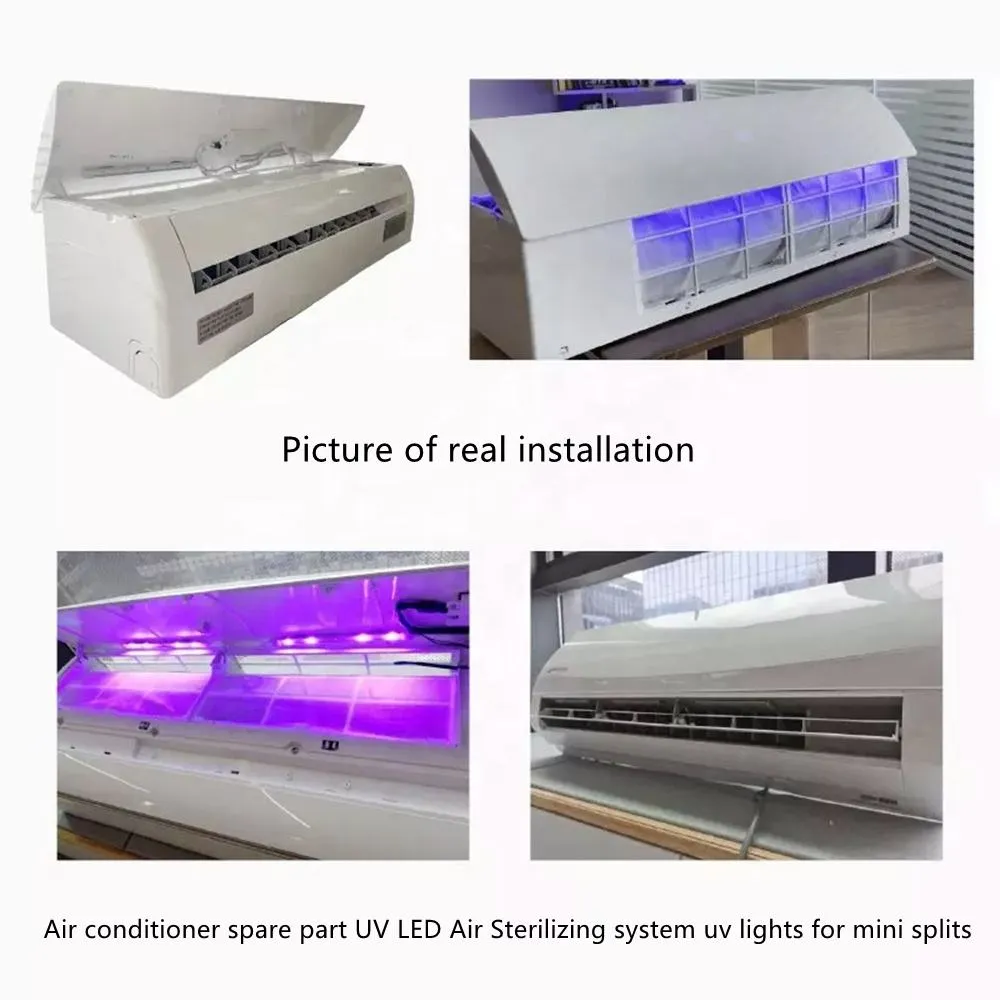

Easy Retrofit: Compact, low-profile design engineered for straightforward installation within existing mini-split indoor units or air handlers without major system modifications.
Energy-Efficient & Long-Lasting: Utilizes low-power, instant-on UVC LEDs with a rated lifespan exceeding 10,000 hours, ensuring continuous protection with minimal impact on system efficiency and maintenance.
